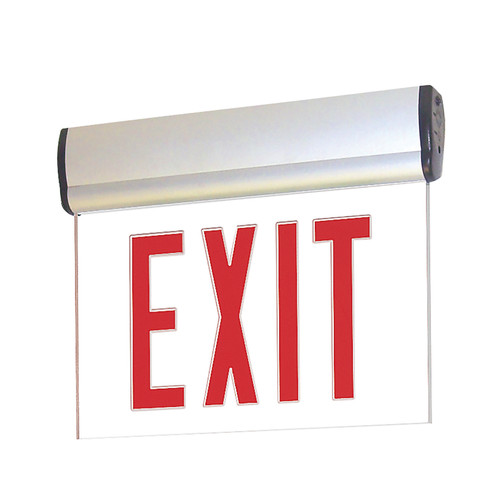

Exit LED Edge-Lit Exit Sign in Aluminum (167|NX811LEDRCA)

LED Edge-Lit Exit Sign by Nora Lighting from the Exit collection in Aluminum finish Architectural acrylic edge-lit sign for applications requiring low-profile, yet decorative appearance. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. 6'' Red letters. 2-Circuit Input Voltage: 120/277VAC Wattage: 3W Finish: Aluminum Face: Edge-lit double face, clear acrylic. Face is constructed with 0.40'' clear acrylic with rounded and finished edge for attractive appearance. Face contains red 6'' high and 3/4'' thick lettering inside face to comply with NFPA requirements. Reflective stick-on chevrons provided and are applied to rear of panel in order for light to reflect off the inner face of the chevron tape to provide a similiar effect as the lettering embedded inside the acrylic. Face can be adjusted in the field from 0º to 90º for wall, ceiling or sloped applications. Body: Extruded aluminum housing and acrylic panel. Mounting: Mounting hardware consist of 0.06'' steel universal junction box bracket, 7/8'' profile 0.11'' die-cast aluminum bracket cover, screws, wire nuts, and silver-finished plastic plugs that are used to eliminate remaining knocouts once mounting configuration is selected. Testing: High charge / ready operation indicator light with test button and automatic reset. Listing: cULus Listed for Damp Locations, UL 924, Title 20, NFPA {ADDITIONAL FINISH INFORMATION: Aluminum}
