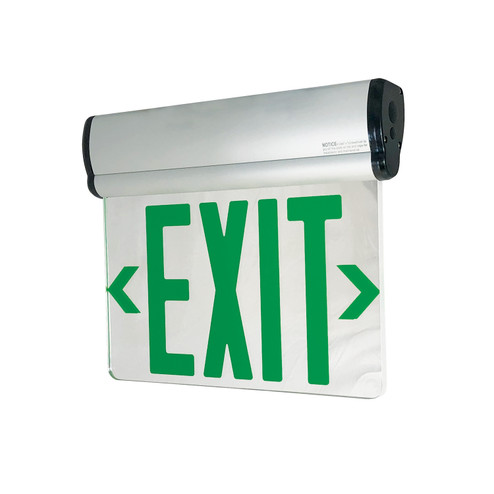

LED Edge-Lit Exit Sign by Nora Lighting from the Exit collection in Aluminum finish Architectural acrylic edge-lit sign for applications requiring low-profile, yet decorative appearance. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. 6'' Green letters. Battery Backup. Input Voltage: 120/277VAC Wattage: 3W Finish: Aluminum Face: Edge-lit double face, mirrored acrylic. Face is constructed with 0.40'' clear acrylic with rounded and finished edge for attractive appearance. Face contains green 6'' high and 3/4'' thick lettering inside face to comply with NFPA requirements. Reflective stick-on chevrons provided and are applied to rear of panel in order for light to reflect off the inner face of the chevron tape to provide a similiar effect as the lettering embedded inside the acrylic. Face can be adjusted in the field from 0º to 90º for wall, ceiling or sloped applications. Body: Extruded aluminum housing and acrylic panel. Mounting: Mounting hardware consist of 0.06'' steel universal junction box bracket, 7/8'' profile 0.11'' die-cast aluminum bracket cover, screws, wire nuts, and silver-finished plastic plugs that are used to eliminate remaining knocouts once mounting configuration is selected. Testing: High charge / ready operation indicator light with test button and automatic reset. Listing: cULus Listed for Damp Locations, UL 924, Title 20, NFPA {ADDITIONAL FINISH INFORMATION: Aluminum}
- AVAILABLE FOR PURCHASE:
- YES
- IMAGE INFO:
- ACTUAL
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- HEIGHT:
- 11.00
- WIDTH:
- 1.75
- FAMILY:
- EXIT
- LENGTH:
- 12.25
- SHIP WEIGHT:
- 3.15LB
- LED:
- YES
- LIGHT SOURCE:
- LED
- ENERGY EFFICIENT:
- YES
- SPEC SHEET:
- https://noralighting.com/wp-content/uploads/2018/11/NX-810_811_812-LED_spec.pdf
- WIDTH RANGE:
- 0-15''
- BOX WIDTH:
- 3.00''
- BOX HEIGHT:
- 8.50''
- BOX LENGTH:
- 12.50
- SAFETY LISTING:
- UL
- REQUIRED (NOT INCLUDED):
- 3.00 WATT 3.00 WATT =BULBS
- SAFETY RATING:
- DAMP
- MAX WATTAGE:
- 3.00
- FINISH:
- TWO-TONE
- STANDARD STYLE:
- TRANSITIONAL
- QUANTITY AVAILABLE AT MANUFACTURER:
- 62400
