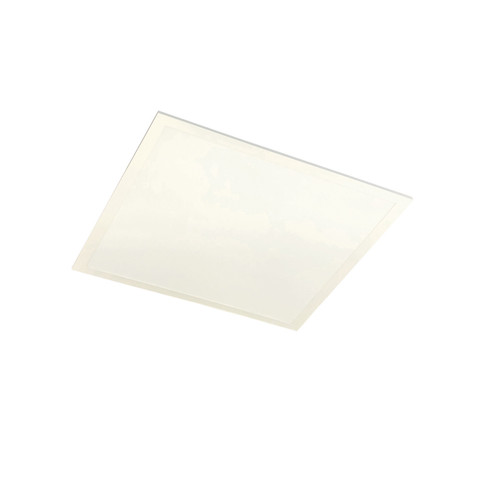

LED Back-Lit Panel by Nora Lighting from the LED Lay-In Panel Light collection in White finish 2'x2' LED Backlit can be utilized in offices, conference rooms, libraries and other tasks areas where general illumination is desired. The white diffused lens optimizes output while diffusing LED diode image. Each luminaire includes two tunable switches, Selectable Lumens allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance. Input Voltage: 120-277VAC Lumens: Selectable Lumens (2655lm to 3759lm) Wattage: Selectable Wattage (20W to 30W) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Color Rendering Index: 80+ CRI Dimming: 0-10V Finish: White Mounting Accessories: Recessed Kit, Surface Mount Kit or Pendant Mount Kit (ordered separately) Emergency: Luminaire includes an emergency battery with remote test switch. Battery operates luminaire for 90 minute emergency operation on fully charged battery. Listing: cULus Listed for Damp Locations {ADDITIONAL FINISH INFORMATION: White}
- AVAILABLE FOR PURCHASE:
- NO
- IMAGE INFO:
- ACTUAL
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- HEIGHT:
- 3.63
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 23.75
- WIDTH RANGE:
- 20-25''
- LENGTH:
- 23.75
- SHIP WEIGHT:
- 15.00LB
- BOX WIDTH:
- 27.00''
- BOX HEIGHT:
- 7.00''
- BOX LENGTH:
- 27.00
- SPEC SHEET:
- https://noralighting.com/wp-content/uploads/2022/06/NPDBLSW_spec.pdf
- FINISH:
- WHITE
- STANDARD STYLE:
- CONTEMPORARY MODERN
- FAMILY:
- LED LAY-IN PANEL LIGHT
- COLOR TEMPERATURE:
- 3000K
- CRI:
- 80
- LIGHT OUTPUT:
- 3759.00LM
- SAFETY LISTING:
- CULUS
- SAFETY RATING:
- DAMP
- INSTRUCTIONS:
- https://noralighting.com/wp-content/uploads/2022/06/IS-NPDBLSW.pdf
- QUANTITY AVAILABLE AT MANUFACTURER:
- 0
- GLASS FINISH OR STYLE:
- WHITE
