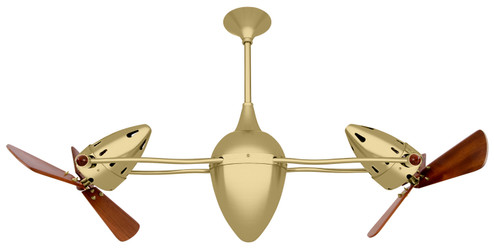

48''Ceiling Fan by Matthews Fan Company from the Ar Ruthiane collection in Brushed Brass finish The Ar Ruthiane's unique hourglass support arms grasp bullet-shaped motor housings which rotate 360° about its teardrop center. The fan heads can be infinitely positioned in 180-degree arcs for optimum air movement, the greater the angles of the motors to the horizontal support rods (up or down), the faster the axial rotation. A slow, controlled axial rotation is achieved by both fan head position and fan blade speed. Matthews 360° rotational fans circulate heat and air conditioning more efficiently than traditional paddle fans. Constructed of cast aluminum, heavy spun and stamped steel, the Ar Ruthiane carries a limited lifetime warranty. {ADDITIONAL FINISH INFORMATION: Brushed Brass}
- AVAILABLE FOR PURCHASE:
- NO
- FINISH:
- BRASS
- IMAGE INFO:
- ACTUAL
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- STANDARD STYLE:
- TRADITIONAL
- HEIGHT:
- 12.00
- WIDTH:
- 48.00
- WIDTH RANGE:
- 45-50''
- FAMILY:
- AR RUTHIANE
- LENGTH:
- 12.00
- SHIP WEIGHT:
- 33.00LB
- BOX WIDTH:
- 15.00''
- BOX HEIGHT:
- 15.00''
- BOX LENGTH:
- 44.00
- CHAIN:
- 5`` 10`` 20`` 30`` 48`` 72``
- MATERIAL:
- CONSTRUCTED OF CAST ALUMINUM HEAVY SPUN AND STAMPED STEEL. EACH UNIQUE MOTOR MOUNT AND FAN HEAD KNOB IS MADE OF GENUINE MARBLEIZED BAKELITE.
- SAFETY LISTING:
- UL CUL
- SAFETY RATING:
- DAMP
- VOLTAGE:
- 110.00
- INSTRUCTIONS:
- https://s3.amazonaws.com/industrysync.com/MatthewsFanCo/MatthewsFanCoInstallationGuides/DD-VB-AR-IV-Manual2019.pdf
- MANUFACTURER WARRANTY:
- LIMITED LIFETIME
- PARTS DIAGRAM:
- https://s3.amazonaws.com/industrysync.com/MatthewsFanCo/Mfr_SpecSheets/Ar_Ruthiane.pdf
- AIRFLOW EFFICIENCY:
- 48CFM/W
- FAN AIRFLOW:
- 4724CFM
- BLADE FINISH:
- MAHOGANY
- BLADE PITCH:
- 19°
- BLADE QUNATITY:
- 6
- BLADE SPAN:
- 16``
- FAN DOWNROD:
- 10
- FAN CONTROL:
- WALL CONTROL
- FAN ELECTRICITY USE:
- 96W
- REVERSE AIR:
- NO
- FAN SPEEDS:
- 3
- TITLE 20:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 0
