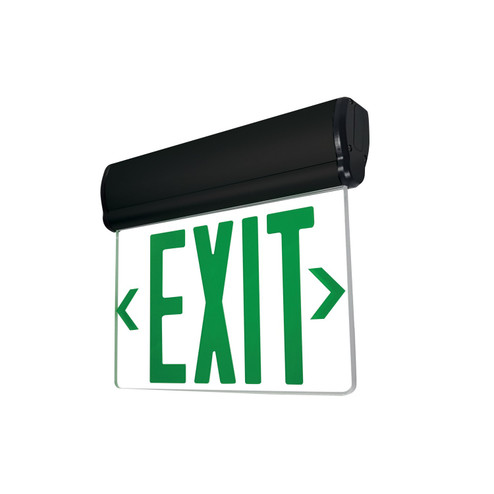

Exit & Emergency LED Edge-Lit Exit Sign in Black (167|NX812LEDGCB)

Shop This Collection
$117.90
(No reviews yet) Write a Review
Finish: BLACK
Width: 1.75in
Height: 11.00in
X
LED Edge-Lit Exit Sign by Nora Lighting from the Exit & Emergency collection in Black finish Architectural acrylic edge-lit sign for applications requiring low-profile, yet decorative appearance. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. 6'' Green letters. Battery Backup. Input Voltage: 120/277VAC Wattage: 3W Finish: Black Face: Edge-lit single face, clear acrylic. Face is constructed with 0.40'' clear acrylic with rounded and finished edge for attractive appearance. Face contains green 6'' high and 3/4'' thick lettering inside face to comply with NFPA requirements. Reflective stick-on chevrons provided and are applied to rear of panel in order for light to reflect off the inner face of the chevron tape to provide a similiar effect as the lettering embedded inside the acrylic. Face can be adjusted in the field from 0º to 90º for wall, ceiling or sloped applications. Body: Extruded aluminum housing and acrylic panel. Mounting: Mounting hardware consist of 0.06'' steel universal junction box bracket, 7/8'' profile 0.11'' die-cast aluminum bracket cover, screws, wire nuts, and silver-finished plastic plugs that are used to eliminate remaining knocouts once mounting configuration is selected. Testing: High charge / ready operation indicator light with test button and automatic reset. Listing: cULus Listed for Damp Locations, UL 924, Title 20, NFPA {ADDITIONAL FINISH INFORMATION: Black}
AVAILABLE FOR PURCHASE:
YES
IMAGE INFO:
ACTUAL
ON DISPLAY IN SHOWROOM:
No
IN STOCK IN SHOWROOM:
No
STANDARD STYLE:
CONTEMPORARY MODERN
HEIGHT:
11.00
WIDTH:
1.75
FAMILY:
EXIT & EMERGENCY
LENGTH:
12.25
SHIP WEIGHT:
3.15LB
LED:
YES
LIGHT SOURCE:
LED
ENERGY EFFICIENT:
YES
SPEC SHEET:
https://noralighting.com/wp-content/uploads/2018/11/NX-810_811_812-LED_spec.pdf
WIDTH RANGE:
0-15''
BOX WIDTH:
3.00''
BOX HEIGHT:
8.50''
BOX LENGTH:
12.50
SAFETY LISTING:
UL
REQUIRED (NOT INCLUDED):
3.00 WATT 3.00 WATT =BULBS
SAFETY RATING:
DAMP
MAX WATTAGE:
3.00
FINISH:
BLACK
BULB TYPE:
LED
QUANTITY AVAILABLE AT MANUFACTURER:
79
